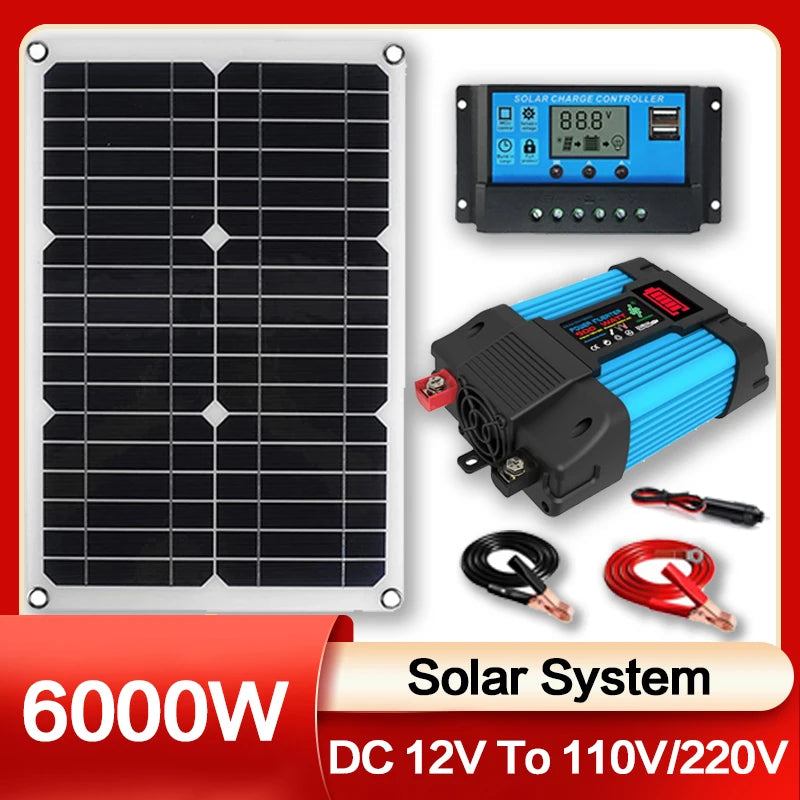

Solar Power Generation System Solar Panel 12V To 110V/220V 6000W Inverter 30A Controller Complete Power Generation Kit Charger

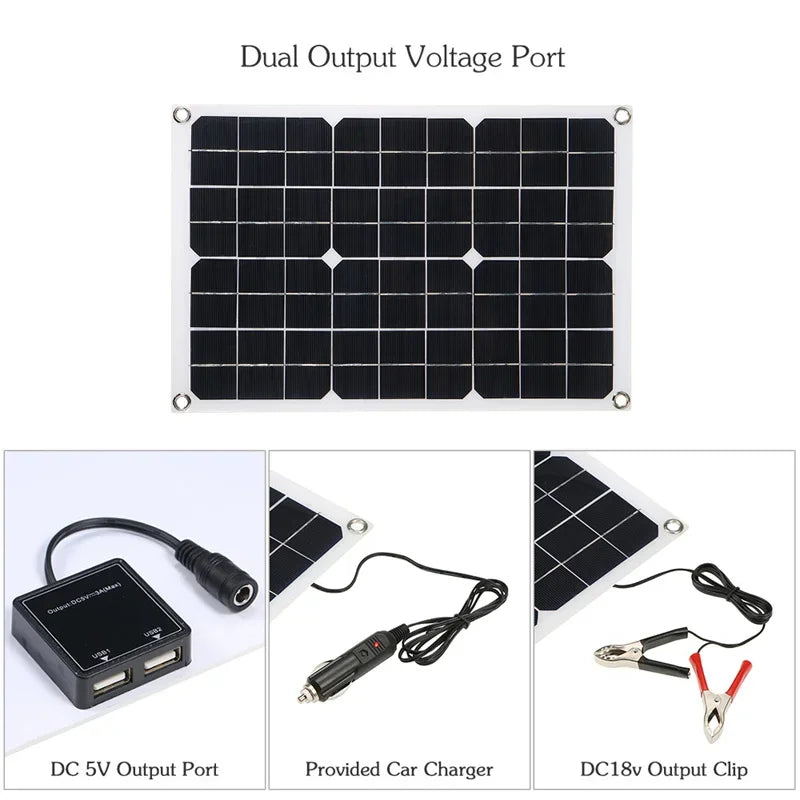

1.Solar Panel

Power: 20W± 5%

Size: 420x280x2.5mm

DC outout: 12V/1.5A

USB output: 5V/1.7A

Weight:0.7kg

Type: Mono Solar Panel

Material: Aluminum substrate

Output accessories: DC cable + DC alligator clip

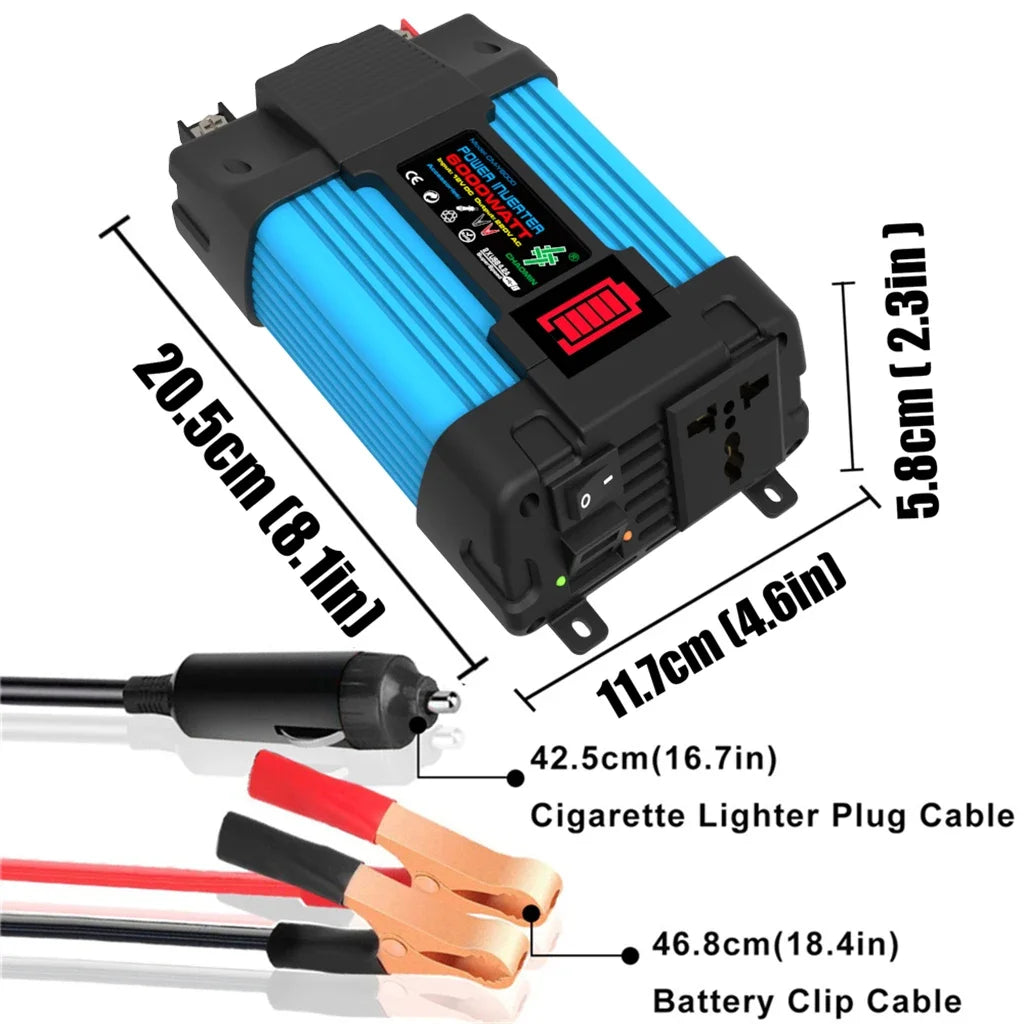

2.Power Inverter 6000W:

Input voltage: DC 10.5V~15V,

(When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)

This is a modified sine wave inverter,NOT applicable for devices which work by built-in motor, hair dryers,air conditioners, coffee machine,water pump, induction cooker,refrigerators and microwave ovens etc.Make sure that the total rated power of the connected devices is ≤ 500W.

Output voltage : AC 220V/110V

Output frequency is: 50Hz/60Hz

Peaks Power : 6000W

Rated power:500W(Please make sure that the total rated power of the connected devices is ≤ 500W).

Output waveform: Modified sine wave

Product Size for inverter: 205x117x58mm

3.12V 24V Automatic Solar Charge Controller PWM with LCD Controller and Dual USB

Charge Current: 30A

Product Size: 148.5x78x35mm

Voltage: DC 12V / 24V Auto intelligent conversion

Display: LCD digital display

USB Charger Ports: Dual USB 5V 2.1A

Operating Temperature: -35~+60

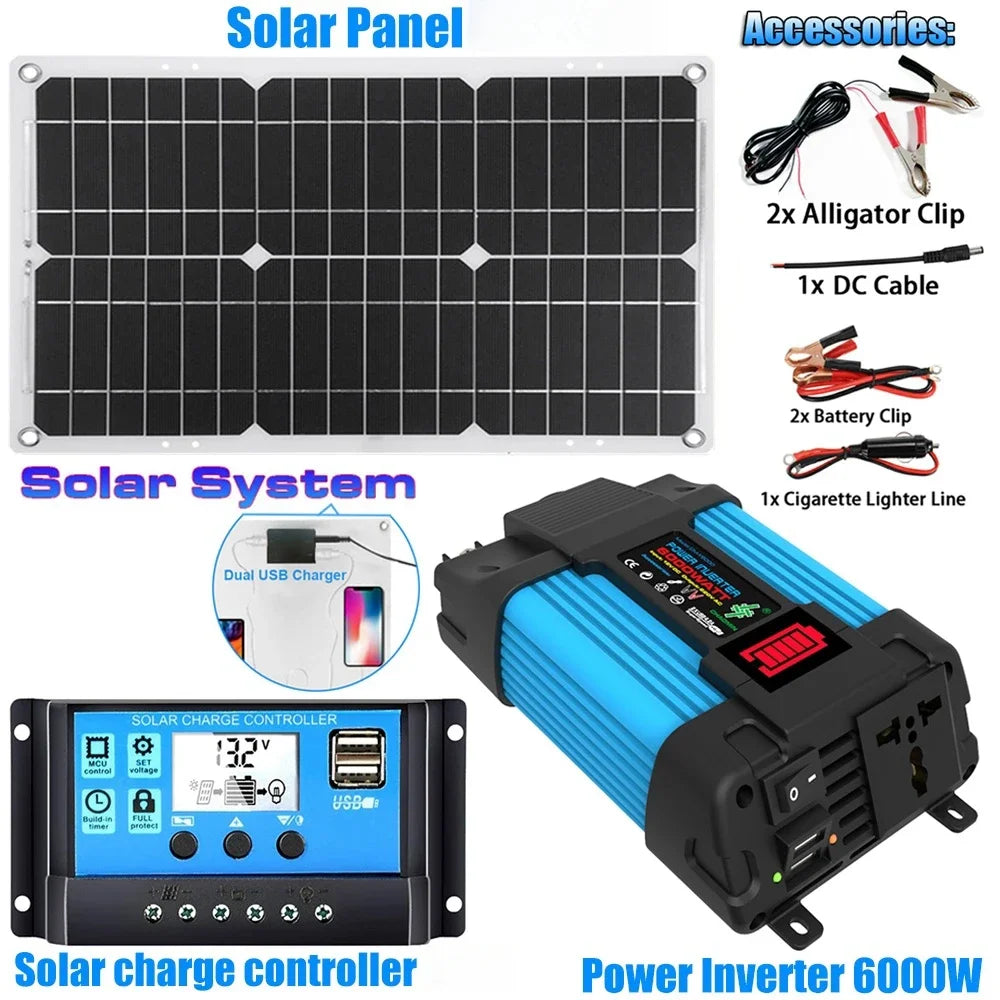

What's in the box:

1 x Power Inverter

2 x Battery Clip

1 x Cigarette Lighter Plug（gift）

1 x User Manual

1 x Solar Panel

1 x Solar Charge Controller 30A 12V/24V

Adavantage:

[LED Green&Red Work Lights] When inverter work normal, the green LED Lights work and tell you it is working well, but when it is on protection status, such as low voltage, high voltage, over temperature, or over load, the Red Led Lights will light up and you need to turn off the inverter, and check which protection function is work, and try to solve it then the inverter can work again.

[ LED BATTERY DISPLAY] Battery Level Bar for LED Display shows the battery Capacity, which can remind you that when your battery no power. When connect the battery with inverter, this LED Screen work and show the real-time capacity of battery. It have five level (lattice) of the Battery Level Bar, and each lattice represents 20% of the battery power. When your

battery is no power, the display will flash to remind you that you need to charge your battery.

[Fast Charging Dual USB ports ] One AC Outlets and two usb ports can offer 100% fast charging for Mobile phones, computers, laptop,breast pump, Nebulizer,Razors,medical rescue device,emergency equipment etc,can be as a Emergency Power Supply

[Multi Protection] Built-in fuses, safe charging design and cooling fan prevents the car power converter from over-heat,saving power and energy.over voltage, overload, over-current, short circuiting, under-voltage, overheating, short circuit protection.

[Lightweight design &Top Quality] Lightweight and compact, ideal for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.

What Size Power Inverter Do I Need?

The size you choose depends on the watts (or amps) of what you want to run (find the power consumption by referring to the specification plate on the appliance or tool). We recommend you buy a larger model than you think you'll need (at least 10% to 20% more than your largest load).
