SPECIFICATIONS

Brand Name: smtkey

Origin: Mainland China

Hign-concerned Chemical: None

Max. Resolution: 2560x1440

Certification: CE

Pixels: 4 Mega

Auto Focus: No

Interface Type: USB

Package: Yes

Image Sensor: CMOS

USB Cable: 1.5M

Lens: 1.8mm/2.8mm

Model: SU200

Choice: yes

semi_Choice: yes

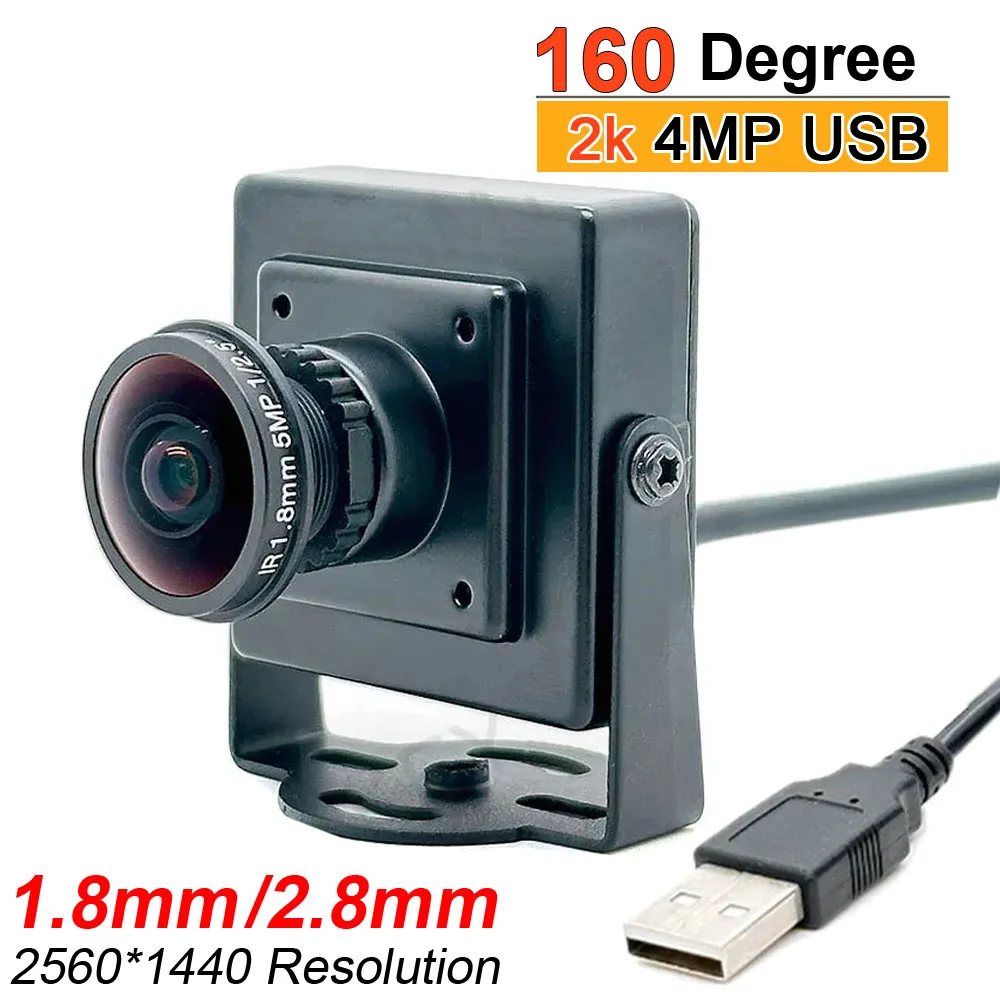

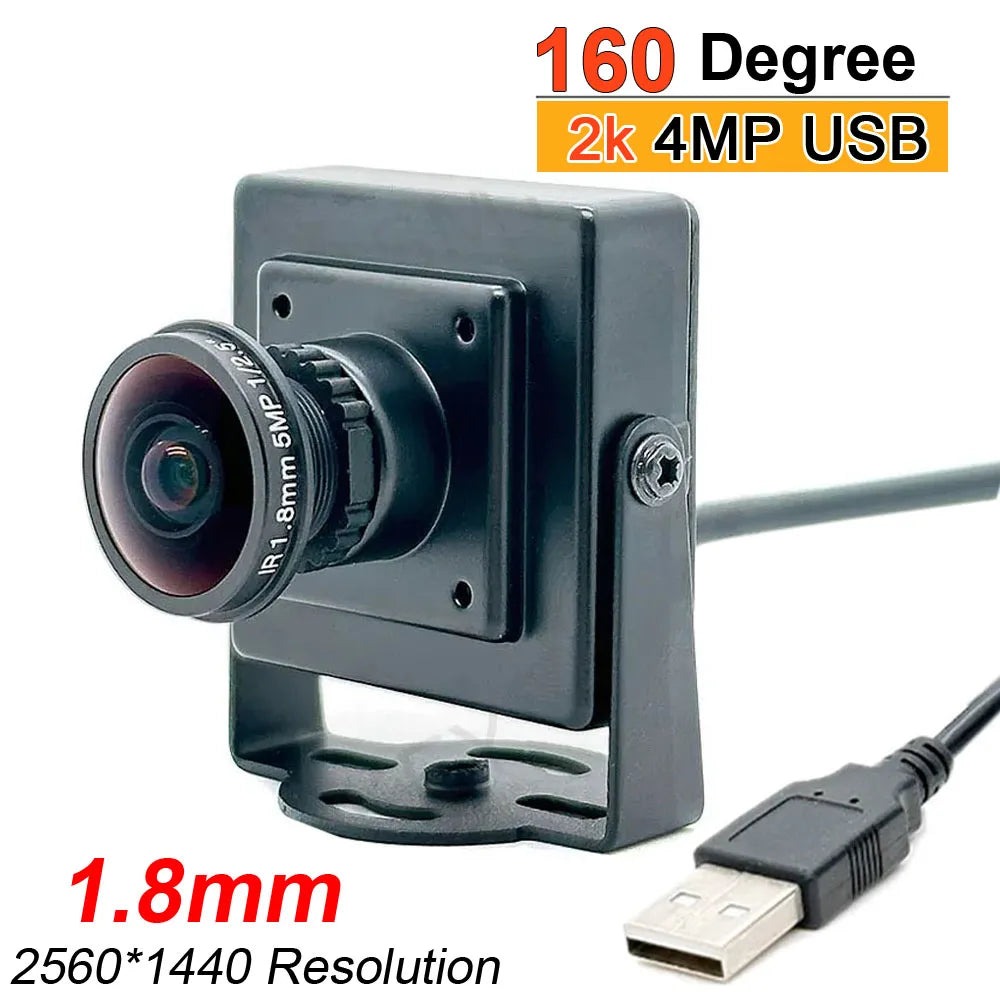

160 Degree Wide Angle 2K HD PC Webcam Mini 4 MegaPixel 30fps High Speed Video Live Streaming Camera UVC Plug Play PC USB Camera For Windows Linux Mac Android

4MP USB Camera Feature:

1.High Speed 4MP HD USB Camera

2.5MP 1.8MM or 3mp 2.8mm Lens can choose

3.High frame rate MJPG– deliver 30 fps in 2560x1440 resolution, 30 fps in 1920X1080 resolution.

4.CMOS F5253 Sensor for high quality image and low power consumption.

5.High speed USB 2.0 interface for high resolution PC camera interface.

6.high pixel technology for sharp image and accurate color reproduction.

7.low light performance – ideal for any lighting condition.

8.Super small outline and thin profile for embedded applications.

9.UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.

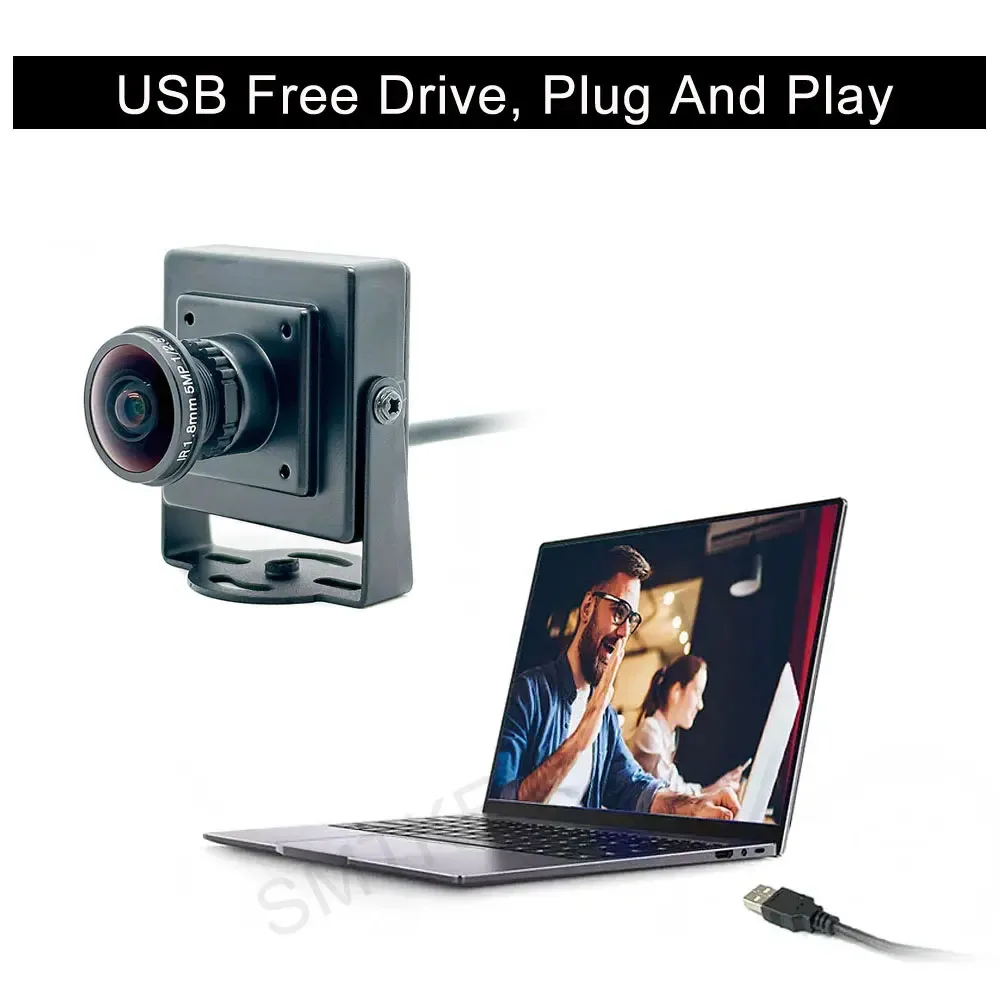

10.Camera With UVC, Drive-free.

Specification:

Sensor：1/2.9'' CMOS GC4053

Pixel：4MP, 4 Megapixel ,2560(H)x1440 （V）Pixels

Max resolution: 2560x1440

Output image format: MJPEG

USB protocol: USB2.0 HS/FS

Support free drive protocol: USB Video Class (UVC)1.1

Audio: With Microphone

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Frame rate:

2560(H)x1440 （V）Pixels MJPEG 30fps

1920(H)x1080 （V） Pixels MJPEG 30fps

1280(H)x 720 （V） Pixels MJPEG 30fps YUV2 30fps

640(H)x480 （V） Pixels MJPEG 30fps YUV2 30fps

Adjustable parameters: brightness, contrast, color saturation, Gamma, WB

Night Vison: no

Minimum illumination: 0.1(F1.2，AGC ON)

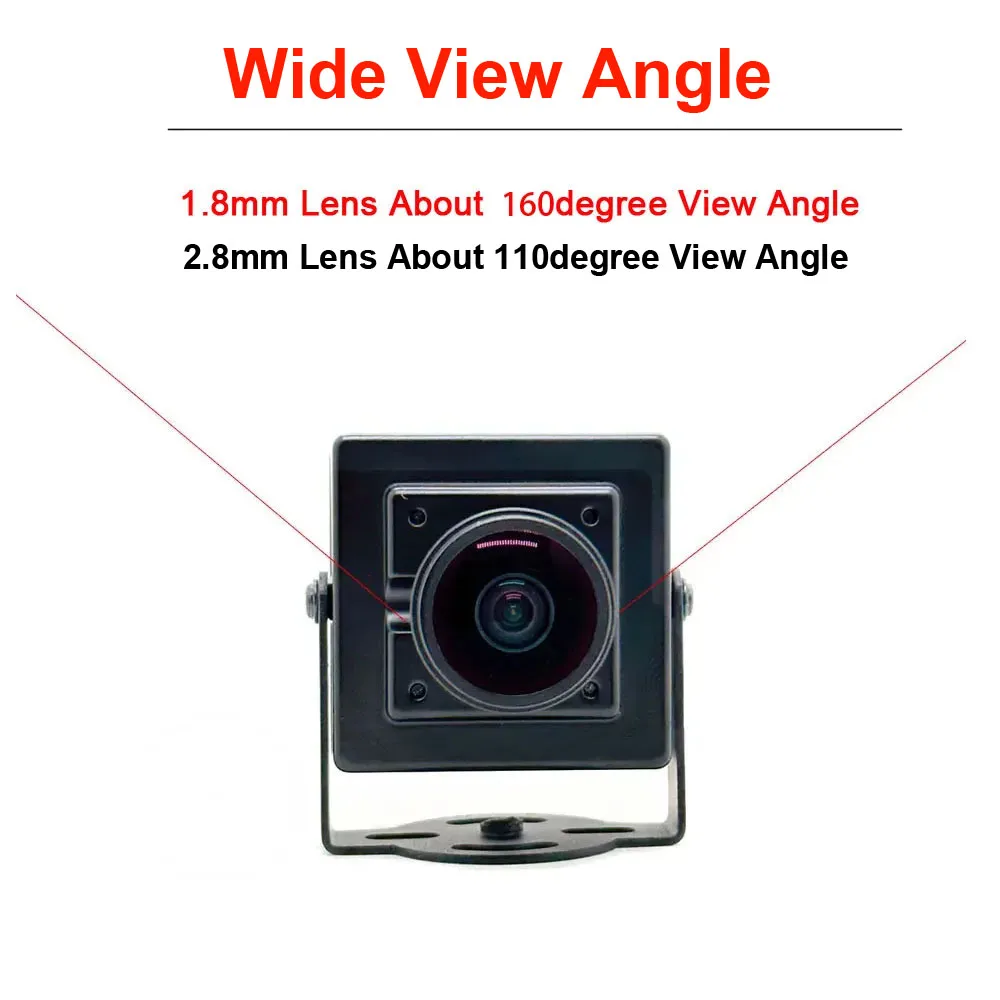

View Angle : Wide angle

Working voltage: DC 5V

Working current: 150mA

Working temperature: -10～60℃

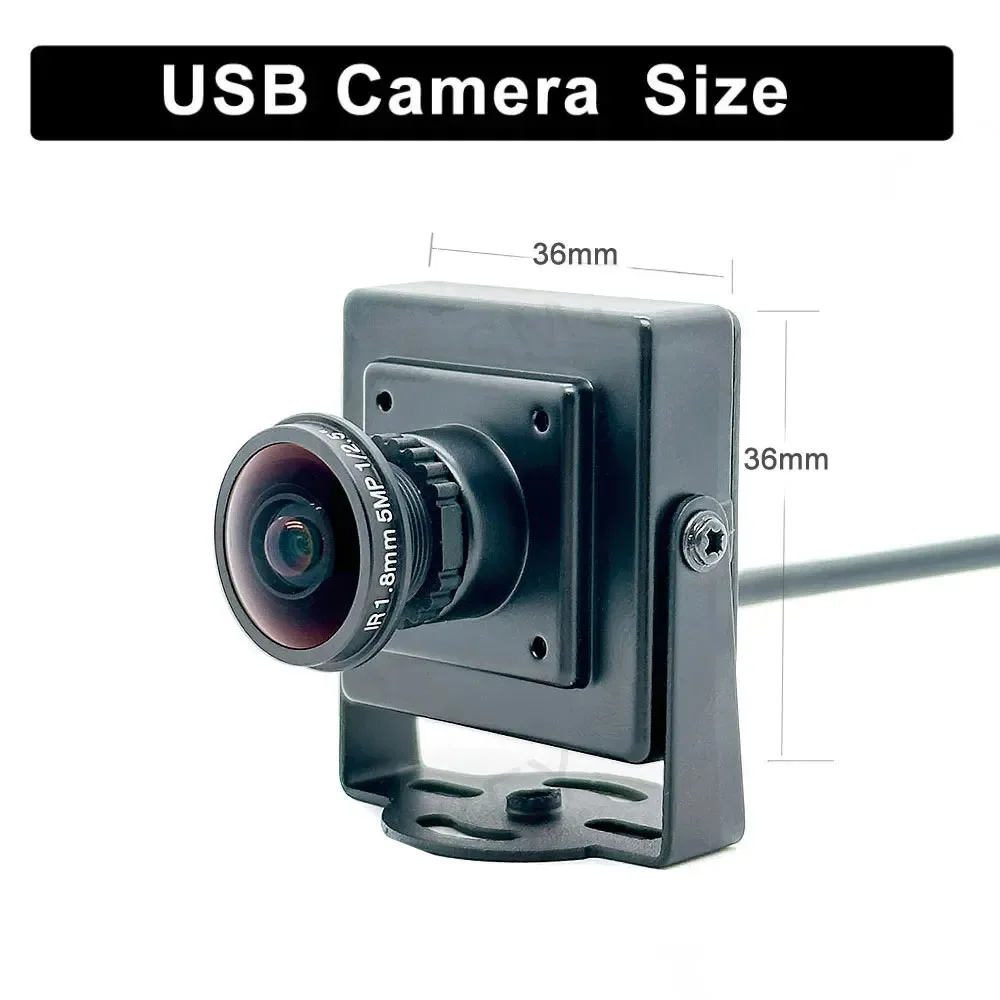

Board size/weight: 32X32mm

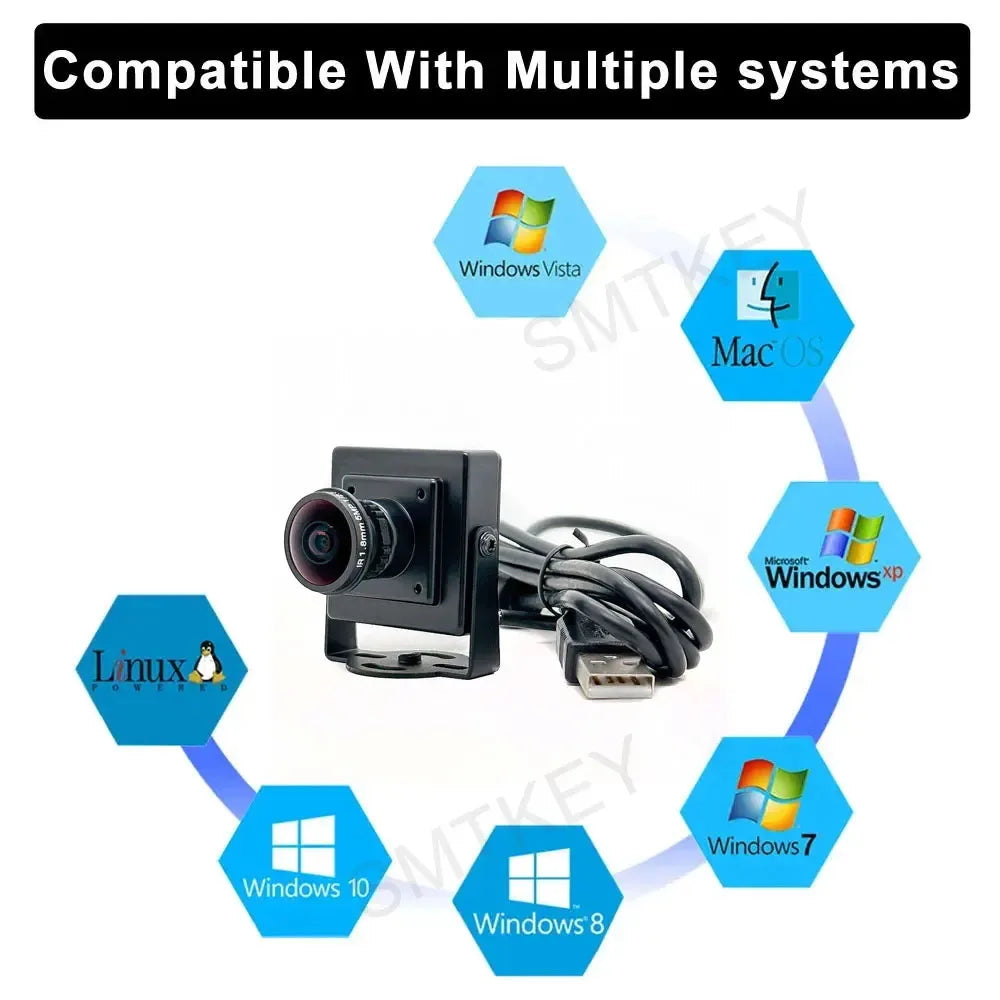

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC
