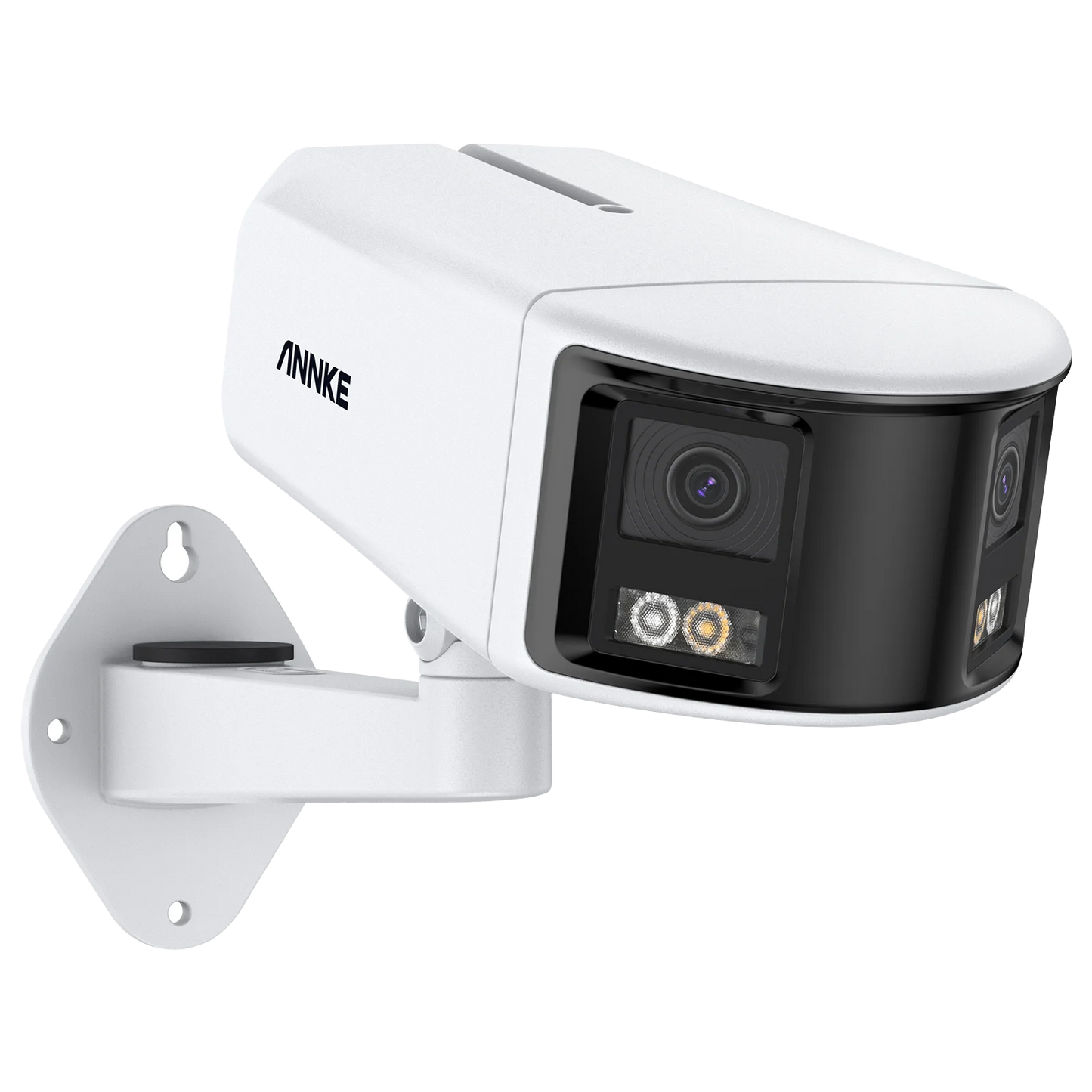

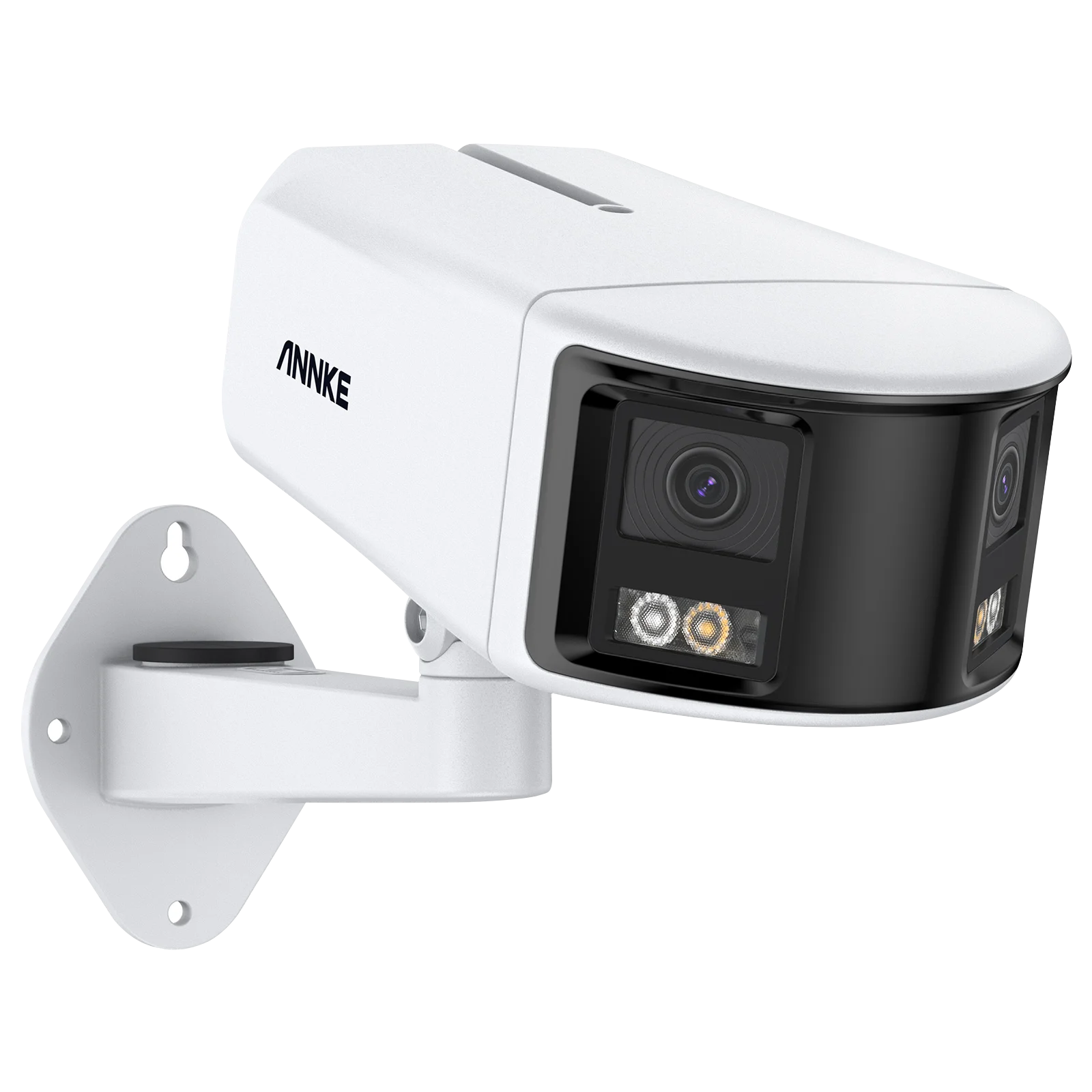

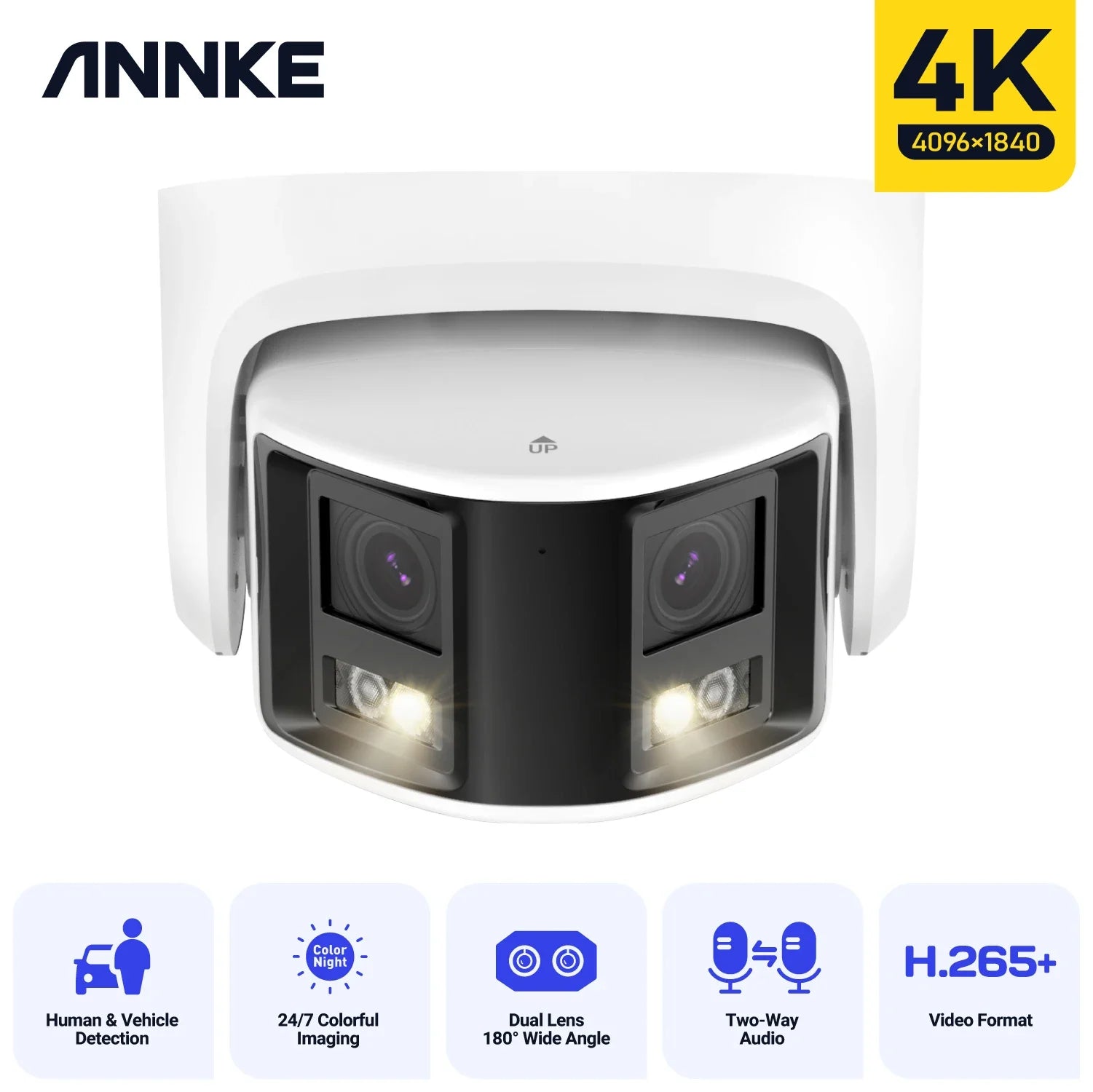

ANNKE 4K Camera Security Panoramic Dual Lens Human Detect Auto Track Two Way Audio IP Camera Dual Lens Poe 180° Wide View Angle
ANNKE 4K Camera Security Panoramic Dual Lens Human Detect Auto Track Two Way Audio IP Camera Dual Lens Poe 180° Wide View Angle
Couldn't load pickup availability
SPECIFICATIONS
AI Functions: Motion Detection
Alarm Type: Local Alarm
App name: other
Audio Output: 1CH BNC
Brand Name: ANNKE
Certification: CE
Color: WHITE
Color Night Vision: Yes
Connectivity: IP/Network Wired
Digital Zoom: None
Dimensions (L x W x D)(mm): 78.8 X 78.6 X 215.2 mm
High Definition: 8.0 Megapixels
Hign-concerned Chemical: None
IP Rating: IP66
IR Distance(m): IR light up to 30m
Installation: Side
Internal Storage: 256GB
Lens (mm): 2.8mm
Megapixels: 8MP
Minimum Illumination(Lux): 2X1/2.5 Progressive Scan CMOS
Model Number: I91DX/I91DW
Movement Range(Pan): -10°-180°
Movement Range(Tilt): -10°-180°
Operating Temperature: -10°-60°
Optical Zoom: None
Origin: Mainland China
Power Consumption(W): 12W
Power Supply: With Poe
Power Supply(V): 12 V DC
Rechargeable Battery: None
Scene: Indoor and outdoor
Sensor: CMOS
Sensor Brand: Sony
Shell Material: Plastic
Smart home platform: None
Solar Panel Power: 20W
Special Features: Waterproof / Weatherproof
Style: Bullet Camera
Supported Mobile Systems: Android,iOS
Supported Operating Systems: Windows 98,Windows XP,Windows Vista,Windows 7,Mac OS,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003
TF Card: None
Video Compression Format: H.265
Viewing Angle : 180°
is_customized: Yes
I91DW/91DX camera only work with "ANNKE" NVR and should be updated to the latest version.
(Please confirm if your NVR is the latest version before you purchase this camera.)
IP Camera | ||
Camera |
Image sensor |
2×1/2.5" Progressive Scan CMOS |
Max resolution |
4K(4096 × 1840), 20: 9 picture ratio |
|
Main Stream |
50 Hz: 20 fps (4096 × 1840) |
|
Sub Stream |
50 Hz：20 fps（1200 × 536，960 × 432） |
|
Video compression |
Main Stream: H.265+/H.265/H.264+/H.264 |
|
Video Bit Rate |
32 Kbps to 16 Mbps |
|
Built-in Microphone |
Built-in Microphone, record with audio |
|
Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 |
|
Built-in Speaker |
Yes, max. sound pressure: 10 cm: 95 dB |
|
Lens |

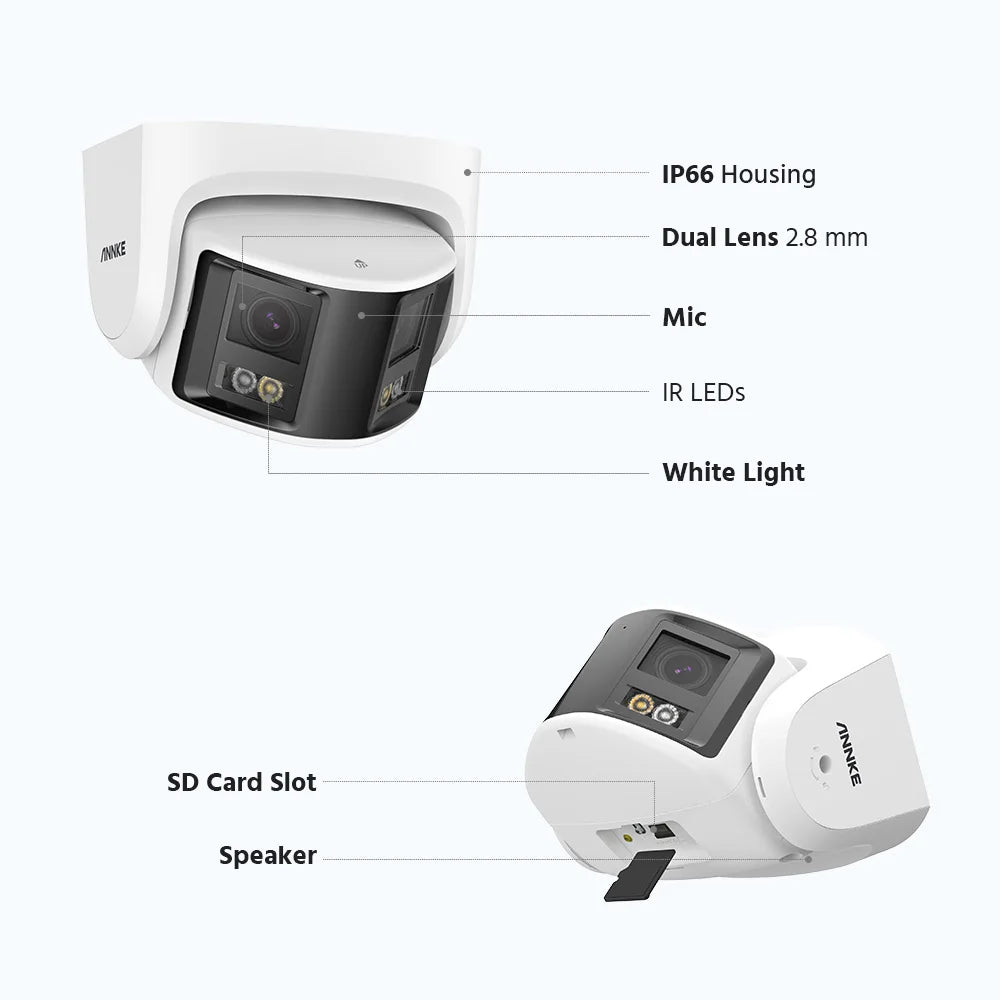

Dual lens: 2.8 mm |
|
Min. Illumination |
Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Angle of View |

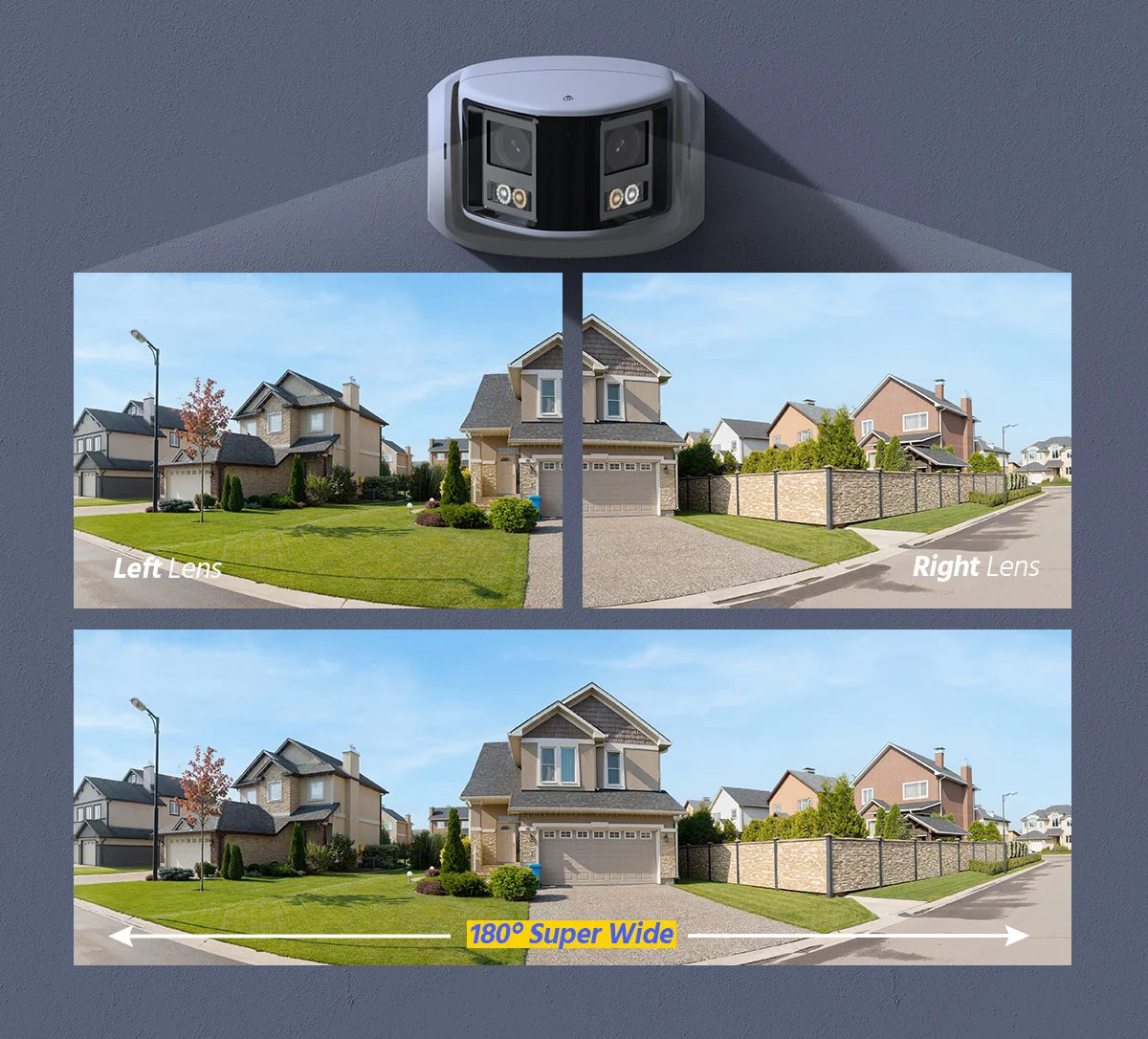

Horizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10° |
|

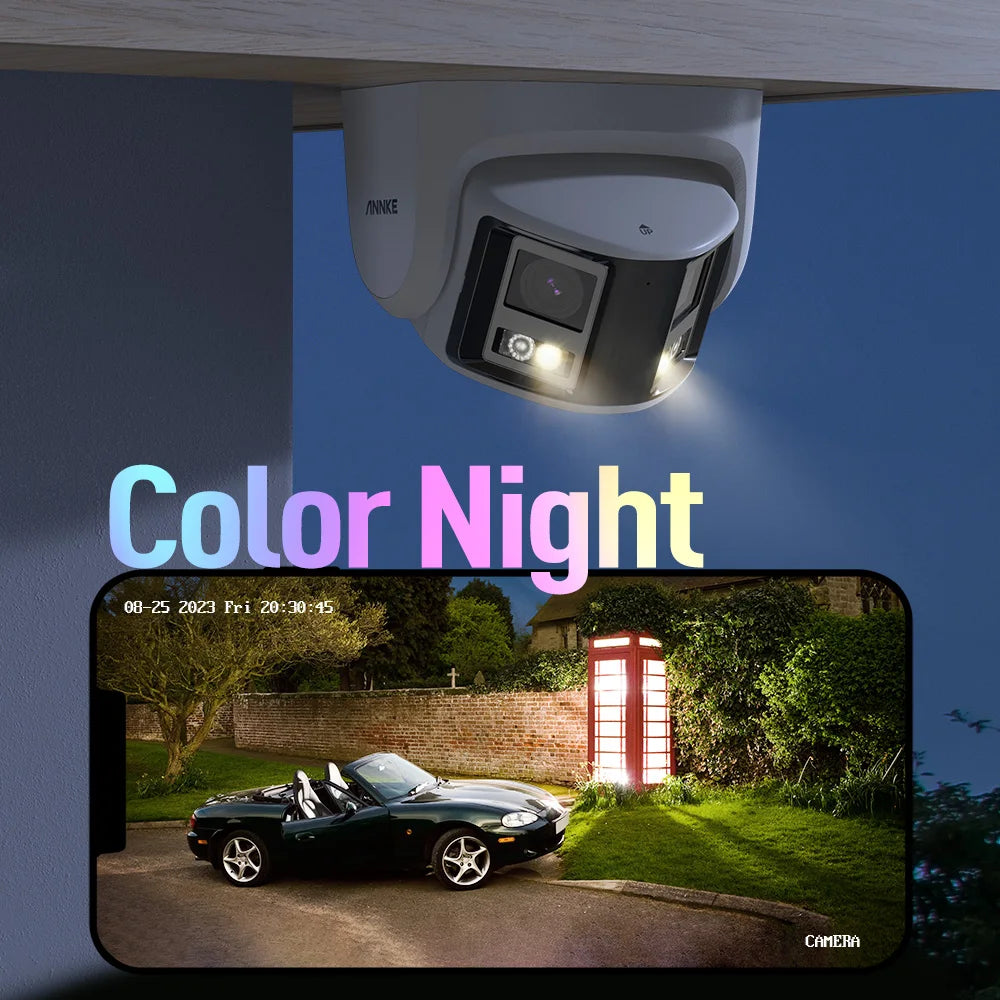

Supplement Light Type |
White light, IR |
|
Supplement Light Range |
White light up to 20 m, IR light up to 30m |
|
Motion detection 2.0 |
Supoort, include Human & Vehicle detection |
|
Image Parameters Switch |
Yes |
|
Image Enhancement |

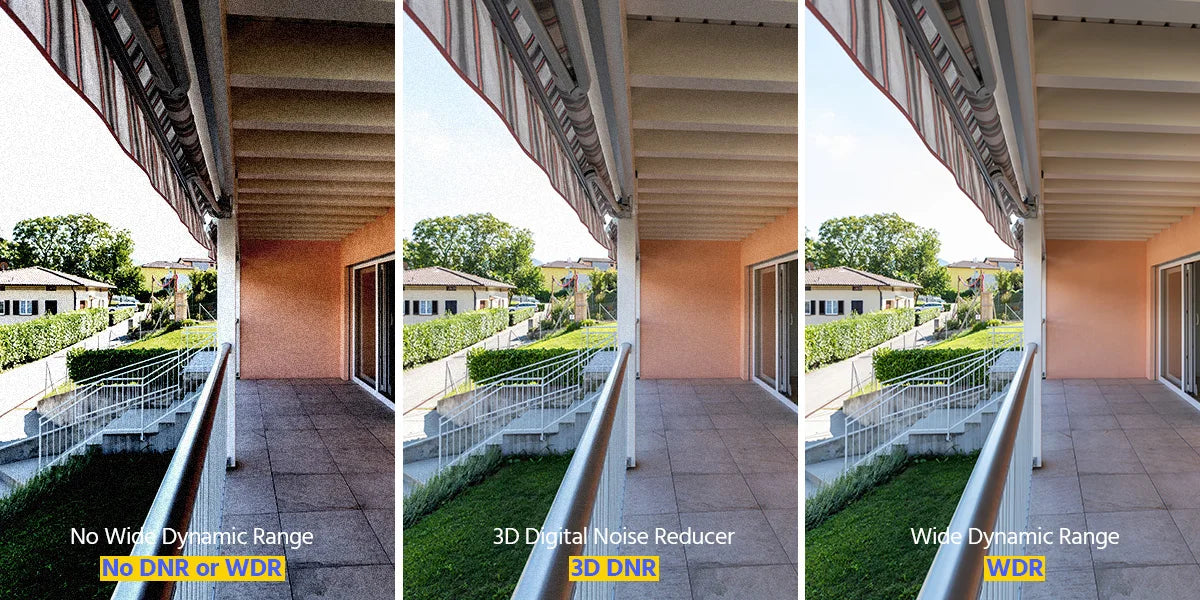

BLC, HLC, 3D DNR |
|
Wide Dynamic Range |
120dB WDR |
|
Network Protocols |
TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket, SNMP |
|
API |
Open Network Video Interface Version 19.12 |
|
Basic Event |
Motion detection (support human and vehicle detection), video tampering, exception detection |
|
Smart Event |
Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection) |
|
Audio Alarm |
Support(Parameters adjustable,support custom audio, can be triggered from APP) |
|
Region of Interest (ROI) |
1 fixed region for main stream |
|
General Function |
IP Address Filter |
|
General |
Housing |
Metal&Plastic, White color |

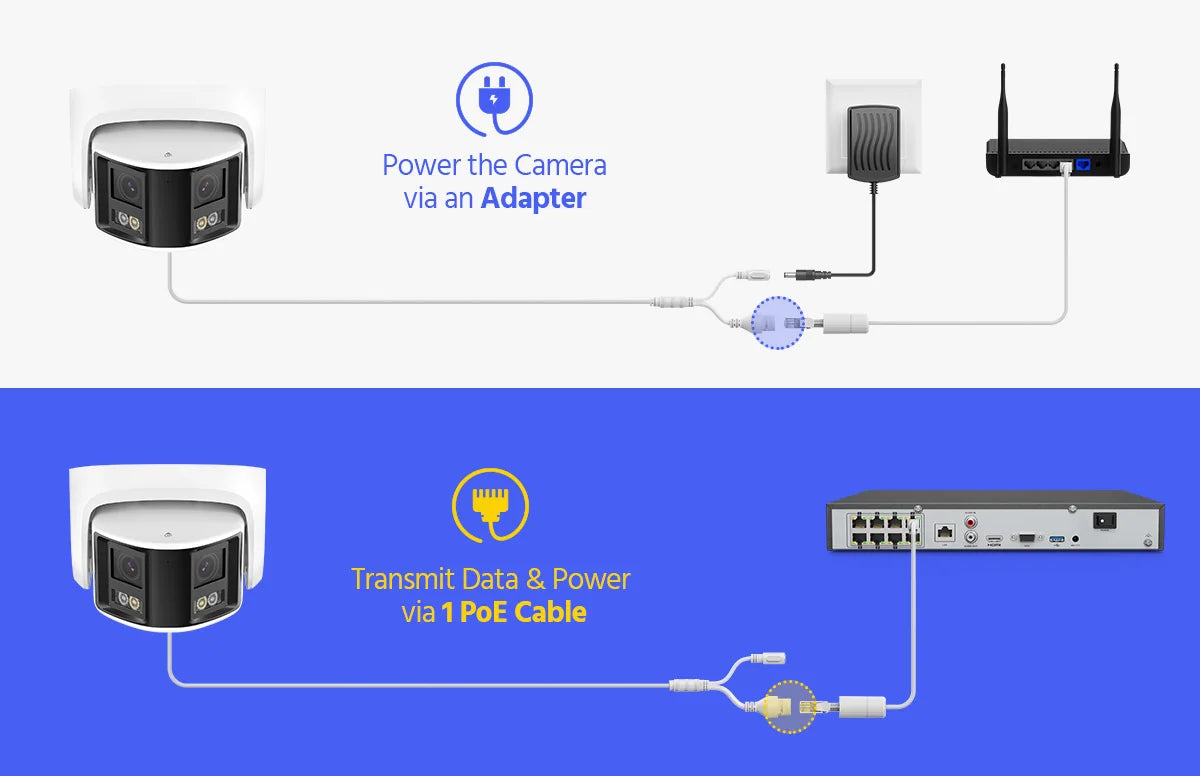

Operating Power |

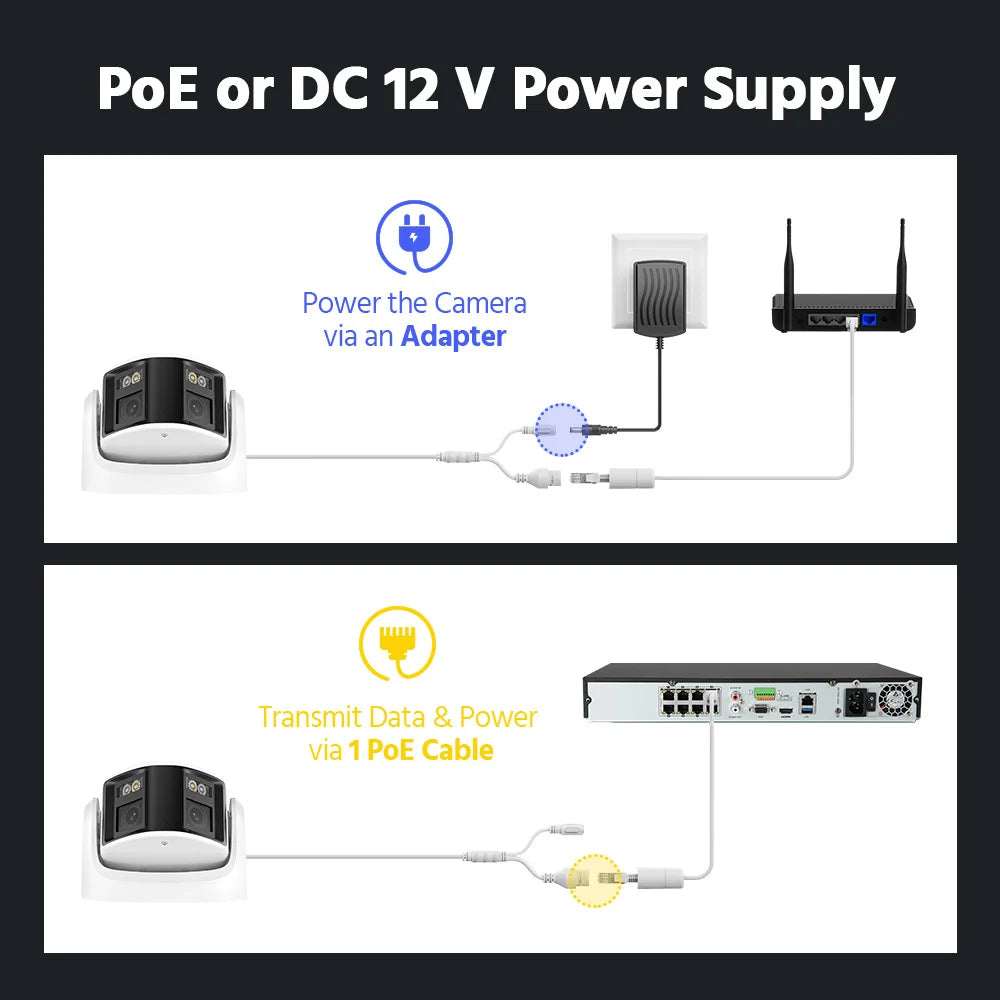

PoE (802.3af)，12 VDC ± 25%,Ø 5.5 mm coaxial power plug |
|
Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
|
Storage |

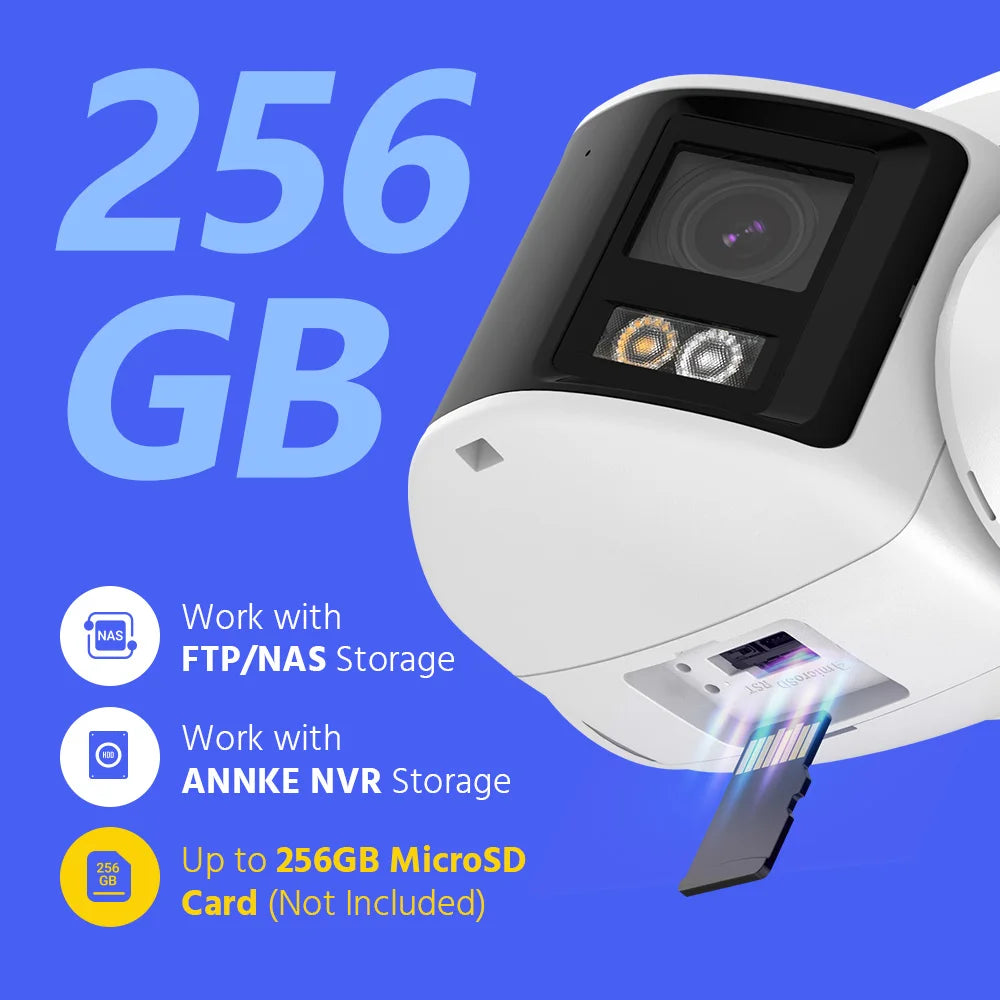

Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR |
|
DC12V output |
DC12 V，100 mA output |
|
Audio input/output |
1 input (line in),1 output (line out) |
|
Alarm nput/output |
1 input, 1 output (max. 24 VDC, 1 A) |
|
Hardware Reset |
Yes |
|
Operating Temperature |
-22 °F – 140 °F /-30 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|

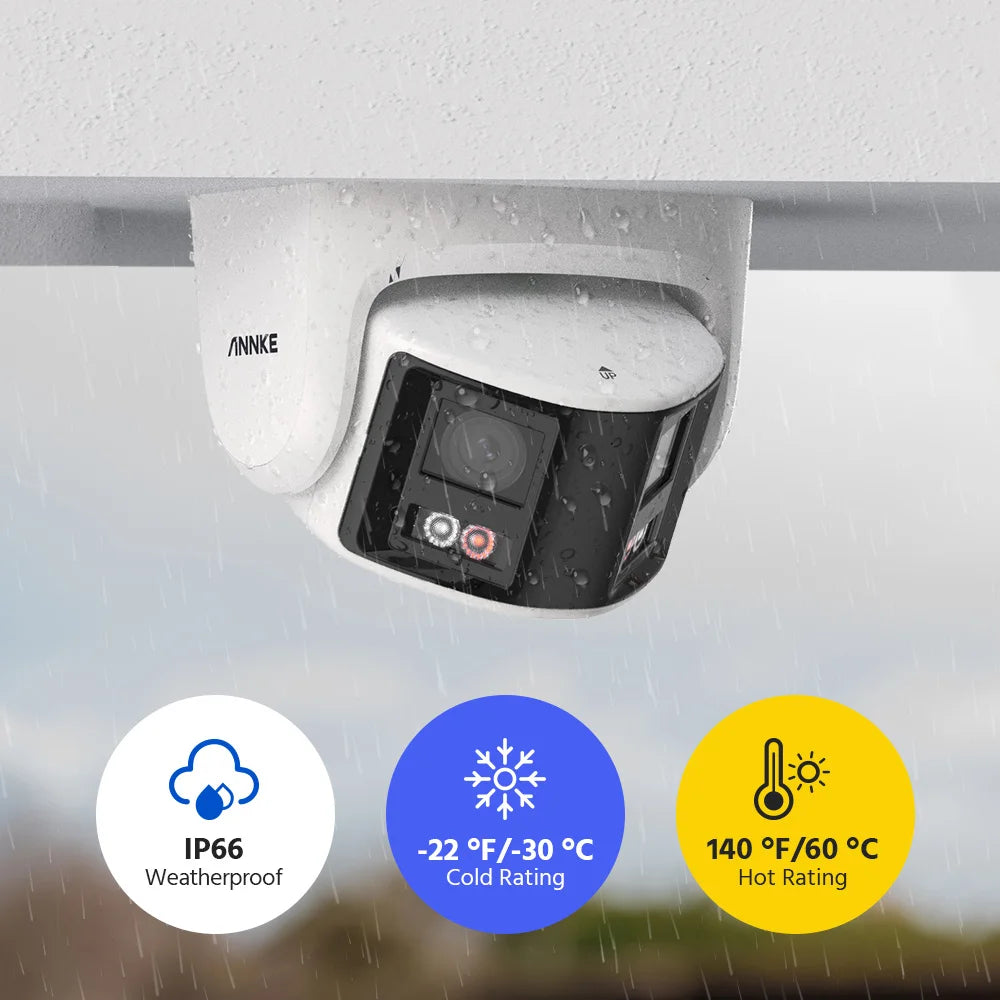

Weatherproof Rating |
IP66 |
|
Dimension (L x W x H) |
138.1 × 101.1 × 120.4 mm |
|
Weight |
Approx. 600 g (1.32 lb.) |
|
